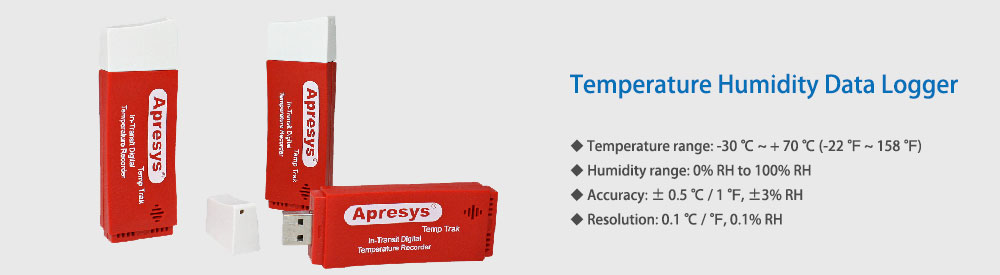

Apresys PDF Single Use Temp RH Data Logger --- No software to install, read the data directly

Prodcut overview

Apresys PDF Single use Temperature Humidity Data Logger is specifically designed for the development of cold chain industry, widely used in food, medicine, logistics, blood, chemicals, electronics and other industries. After the data recording is completed, connect the data logger with the computer port, without the need to install any software or drivers, temperature data logger will generate a report in PDF format automatically.

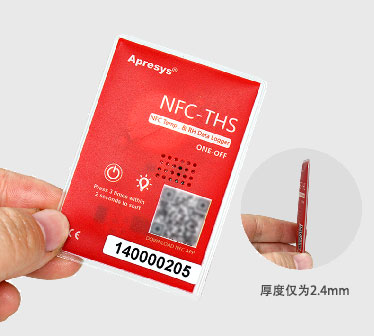

NFC Temperature Humidity Data Logger

Fully enclosed package, dustproof, extremely resistant and fully submersible
Smaller size than a business card, the thickness only 2.4mm
A quick download of the data logger to your NFC phone in 3-5 seconds
You can upload the data to cloud server to facilitate networking online inquiry
Register each data logger before start in order to facilitate traceability security


Technical Parameters:

◆ Temperature range: -30 ℃ ~ + 70 ℃ (-22 ℉ ~ 158 ℉)
◆ Humidity range: 0% RH to 100% RH
◆ Accuracy: ± 0.5 ℃ / 1 ℉, ±3% RH
◆ Resolution: 0.1 ℃ / ℉, 0.1% RH
◆ Model: D25 (interval time: 5 minutes) Recording 25 days
Model: D50 (interval time: 10 minutes) Recording 50 days
Model: D99 (interval time: 20 minutes) Recording 99 days
◆ Temperature units: ℃ / ℉
◆ Memory: 7200 groups
◆ Delay Start Time: 30 minutes
◆ Storage time: 1 year
◆ Key functions: Start / Working status
◆ Display: LED (not started, recording, stop)
◆ Report Type: PDF format
◆ Interface: USB 2.0
◆ Power Supply: 3.0V CR2032 lithium battery
◆ Operating System: WIN XP / 7 /8 /10 and MAC
◆ Protection: IP54
◆ Dimensions: 86mm long x 28mm wide x 12mm high
◆ Weight: 35 g

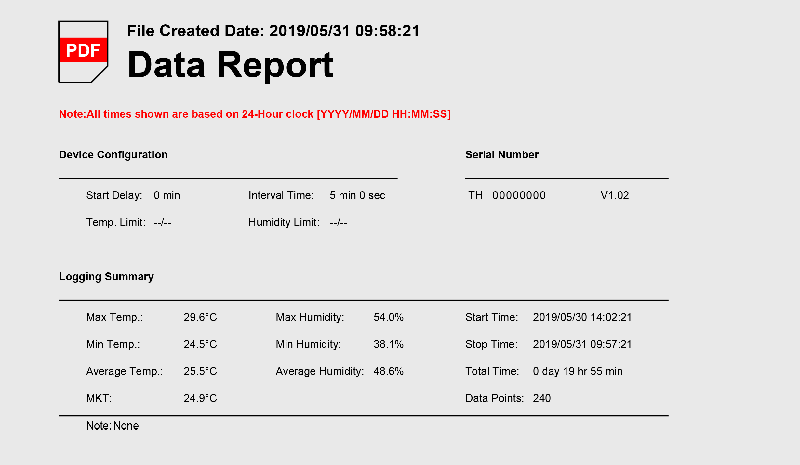

Data Reports

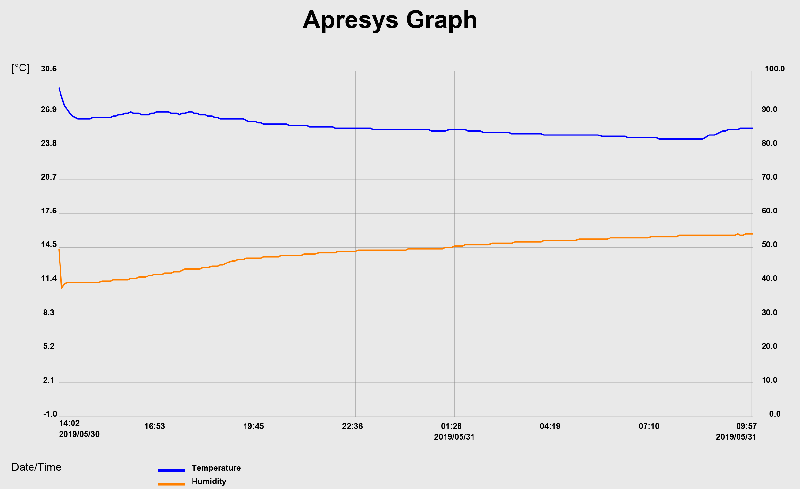

Graph



LED Light indications

Operation LED indicator Status
Before start, quick click the start button Red indicator will flash 1 time Not started
To start recording, press start button for 5s Red indicator flashes 4 times and keeps flashing 10 times Start recording
After start, click start button Red indicator will flash 10 times fast During recording
After read data, click start button Red indicator will stay on bright about 5 seconds Stop recording

Operation Instruction

1. The device can be started by holding down the white button about 5s, Red indicator will flash 4 times slowly then 10 times fast that means data logger has been started.
2. During recording, red indicator will not flash without press .
3. When finish data recording, connect with computer, data logger will stop working automatically after read data.
4.Red indicator will stay on bright about 5 seconds when click button that means the data logger has been used and cannot be started again.
5. The data logger will generate a PDF file folder named Apresys when plugged into the computer, the file contains a PDF format report.
